1x 9 pin Female Header .1"sp
Click to enlarge
More images
Click to enlarge
Part #: HWS15288
Unit Price: $0.50
Weight: 0.00230 lbs
- Qty Price
- 1+ $0.50
- 300+ $0.48
Purchase
Description

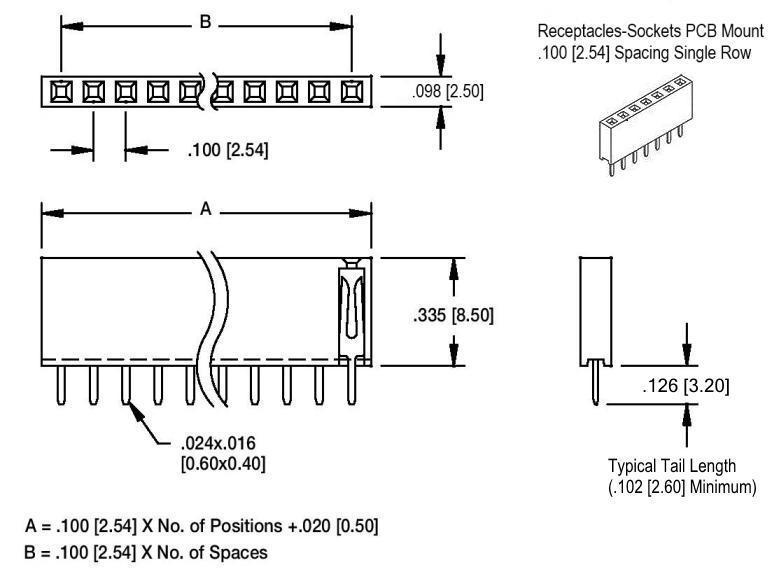

FEMALE HEADER SOCKET 9 PIN
1X9 FEMALE RECEPTACLE
STRAIGHT .1" CENTERLINE
(2.54mm Pin Spacing)
SINGLE ROW MATES WITH
.025" SQUARE POST HEADERS
GOLD PLATED CONTACTS
PCB MOUNT SOLDER TAILS
.335" (8.5mm) BODY HEIGHT
1X9 FEMALE RECEPTACLE
STRAIGHT .1" CENTERLINE
(2.54mm Pin Spacing)
SINGLE ROW MATES WITH
.025" SQUARE POST HEADERS
GOLD PLATED CONTACTS
PCB MOUNT SOLDER TAILS
.335" (8.5mm) BODY HEIGHT
