1x10 pin Female Header .1"sp LP.225"ht
Click to enlarge
More images
Click to enlarge
Part #: HWS16315
Unit Price: $0.74
Weight: 0.00210 lbs
- Qty Price
- 1+ $0.74
- 50+ $0.72
- 100+ $0.69
- 300+ $0.675
Purchase

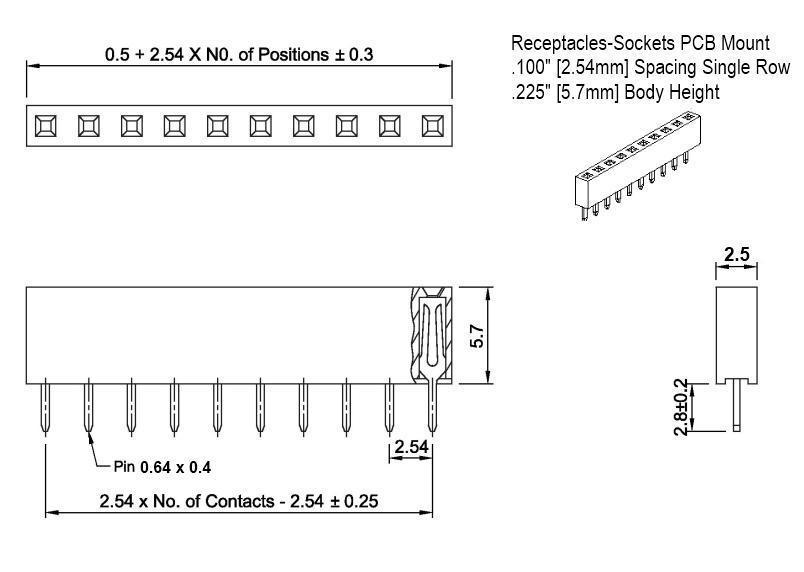

Description
FEMALE HEADER SOCKET 10 PIN
1X10 FEMALE RECEPTACLE
STRAIGHT .1" CENTERLINE
(2.54mm Pin Spacing)
SINGLE ROW MATES WITH
.025" SQUARE POST HEADERS
GOLD PLATED CONTACTS
PCB MOUNT SOLDER TAILS
Low Profile Female Header-Socket
.225" (5.7mm) BODY HEIGHT
1X10 FEMALE RECEPTACLE
STRAIGHT .1" CENTERLINE
(2.54mm Pin Spacing)
SINGLE ROW MATES WITH
.025" SQUARE POST HEADERS
GOLD PLATED CONTACTS
PCB MOUNT SOLDER TAILS
Low Profile Female Header-Socket
.225" (5.7mm) BODY HEIGHT
