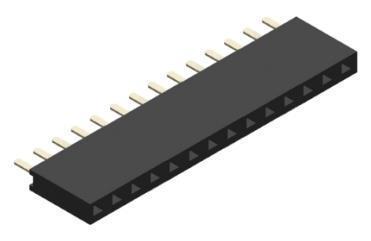

1x14 pin Female Header .1"sp
Click to enlarge
More images
Click to enlarge
Part #: HWS1048
Unit Price: $0.56
Weight: 0.00330 lbs
- Qty Price
- 1+ $0.56
- 200+ $0.52
- 500+ $0.486
- 1000+ $0.45
Purchase

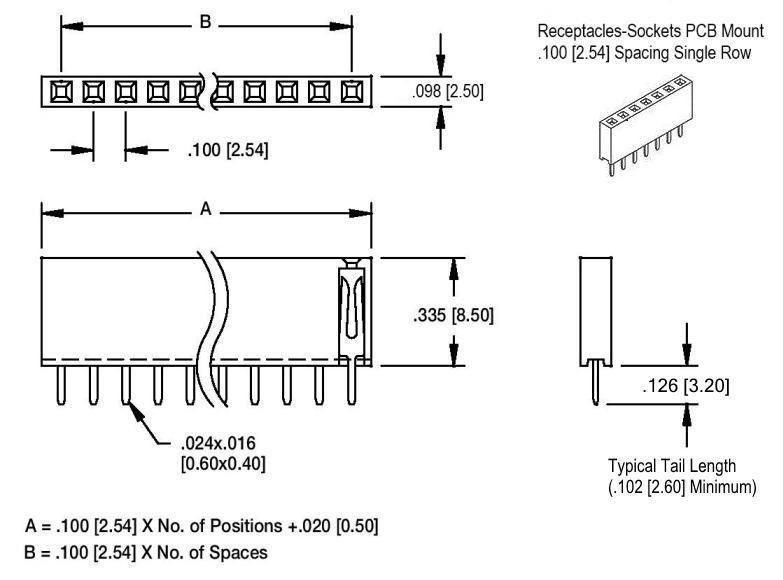

Description
FEMALE HEADER SOCKET 14 PIN
1X14 FEMALE RECEPTACLE
STRAIGHT .1" CENTERLINE
(2.54mm Pin Spacing)
SINGLE ROW MATES WITH
.025" SQUARE POST HEADERS
GOLD PLATED CONTACTS
PCB MOUNT SOLDER TAILS
.335" (8.5mm) BODY HEIGHT
1X14 FEMALE RECEPTACLE
STRAIGHT .1" CENTERLINE
(2.54mm Pin Spacing)
SINGLE ROW MATES WITH
.025" SQUARE POST HEADERS
GOLD PLATED CONTACTS
PCB MOUNT SOLDER TAILS
.335" (8.5mm) BODY HEIGHT
