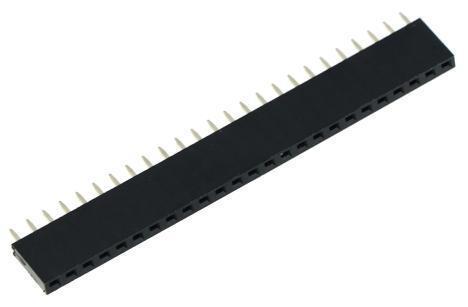

1x25 pin Female Header .1"sp
Click to enlarge
More images
Click to enlarge
Part #: HWS3156
Unit Price: $0.99
Weight: 0.00580 lbs
- Qty Price
- 1+ $0.99
- 100+ $0.97
- 300+ $0.93
Purchase
Description

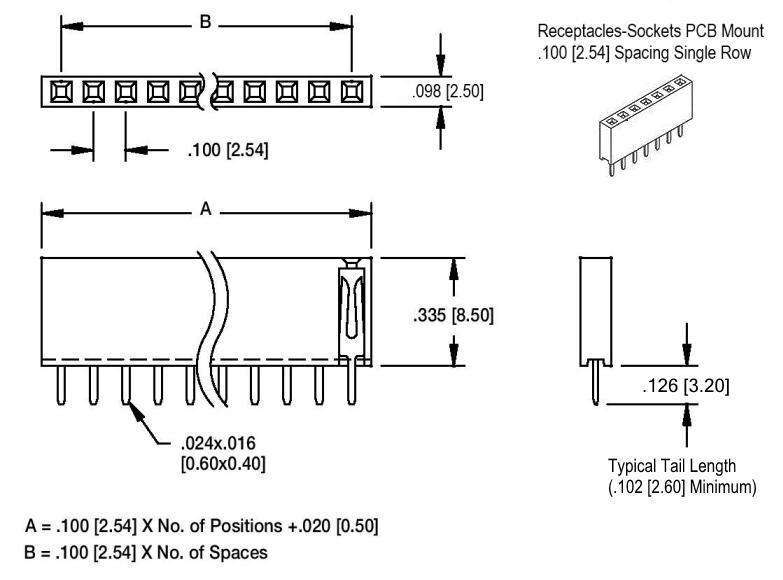

FEMALE HEADER SOCKET 25 PIN
1X25 FEMALE RECEPTACLE
STRAIGHT .1" CENTERLINE
(2.54mm Pin Spacing)
SINGLE ROW MATES WITH
.025" SQUARE POST HEADERS
GOLD PLATED CONTACTS
PCB MOUNT SOLDER TAILS
.335" (8.5mm) BODY HEIGHT
1X25 FEMALE RECEPTACLE
STRAIGHT .1" CENTERLINE
(2.54mm Pin Spacing)
SINGLE ROW MATES WITH
.025" SQUARE POST HEADERS
GOLD PLATED CONTACTS
PCB MOUNT SOLDER TAILS
.335" (8.5mm) BODY HEIGHT
