Home > Female Headers PCB Mount > Female Headers PCB 1x Row .100
Print

1x16 pin Female Header .1"sp

1x16 pin Female Header .1"sp
Click to enlarge

More images

Click to enlarge
Part #: HWS15774
Unit Price: $0.63
Weight: 0.00370 lbs
Hot Deal
  • Qty Price
  • 1+ $0.63
  • 200+ $0.59
  • 400+ $0.55
  • 800+ $0.52

Purchase

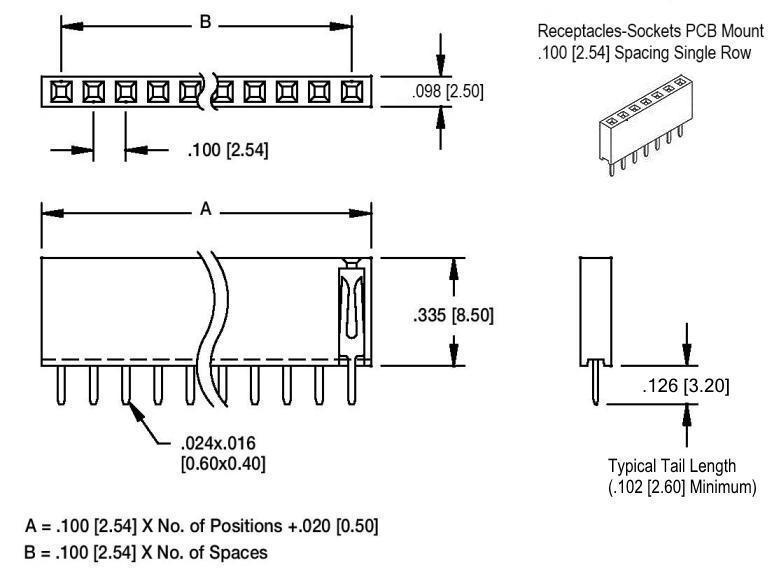

Description

FEMALE HEADER SOCKET 16 PIN
1X16 FEMALE RECEPTACLE
STRAIGHT .1" CENTERLINE
(2.54mm Pin Spacing)
SINGLE ROW MATES WITH
.025" SQUARE POST HEADERS
GOLD PLATED CONTACTS
PCB MOUNT SOLDER TAILS
.335" (8.5mm) BODY HEIGHT
Cancer & Reproductive Harm: P65Warnings.ca.gov Click to see why the Warning
