1x 2 pin Female Header .1"sp Long Tail
Click to enlarge
More images
Click to enlarge
Part #: HWS16436
Unit Price: $0.41
Weight: 0.00090 lbs
- Qty Price
- 1+ $0.41
- 100+ $0.38
Purchase

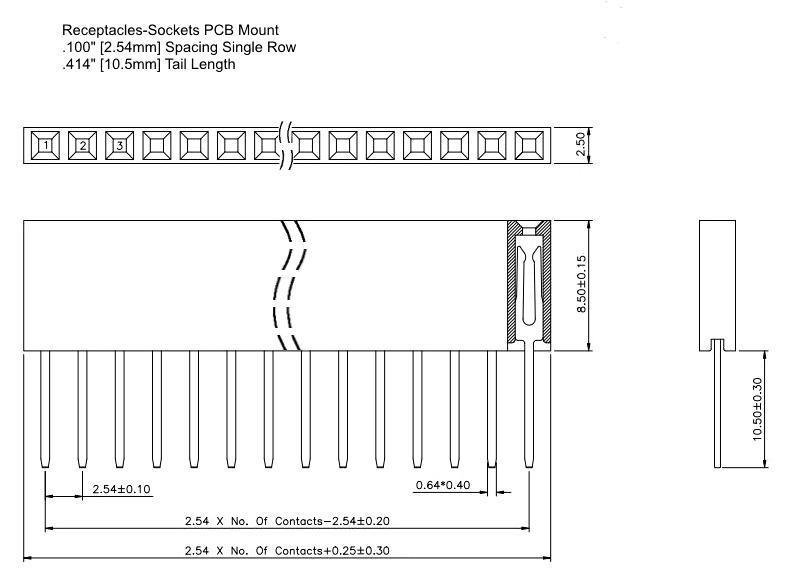

Description
FEMALE HEADER SOCKET 2 PIN
1X2 FEMALE RECEPTACLE
ELEVATED LONG TAILS
STRAIGHT .1" CENTERLINE
(2.54mm Pin Spacing)
SINGLE ROW MATES WITH
.025" SQUARE POST HEADERS
.335" (8.5mm) BODY HEIGHT
EXTENDED HEIGHT PINS
.414" (10.5mm) TAIL LENGTH
PCB MOUNT GOLD PLATED
FOR BOARD STACKING
1X2 FEMALE RECEPTACLE
ELEVATED LONG TAILS
STRAIGHT .1" CENTERLINE
(2.54mm Pin Spacing)
SINGLE ROW MATES WITH
.025" SQUARE POST HEADERS
.335" (8.5mm) BODY HEIGHT
EXTENDED HEIGHT PINS
.414" (10.5mm) TAIL LENGTH
PCB MOUNT GOLD PLATED
FOR BOARD STACKING
