1x 7 pin Snappable Header .05" Sp .230"MH
Click to enlarge
More images
Click to enlarge
Part #: HWS8365
Unit Price: $0.51
Weight: 0.00140 lbs
Purchase

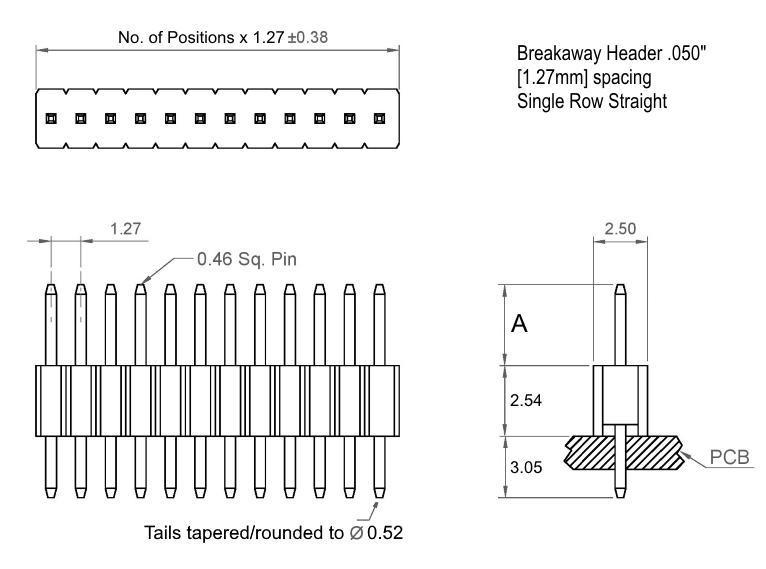

Description
Number of Pins: 7
1x7 Single Row Breakaway
Header Straight / Vertical
1.27mm Centerline
(.050" Pin Spacing)
A dim=5.84mm (.230")
0.46mm Square Posts Tin Plated
2.54mm Insulator Thickness
Male Pin Headers 1.27 mm Pitch
1x7 Single Row Breakaway
Header Straight / Vertical
1.27mm Centerline
(.050" Pin Spacing)
A dim=5.84mm (.230")
0.46mm Square Posts Tin Plated
2.54mm Insulator Thickness
Male Pin Headers 1.27 mm Pitch
