1x 4 pin Snappable Header .05" Sp .100"MH
Click to enlarge
More images
Click to enlarge
Part #: HWS13556
Unit Price: $0.24
Weight: 0.00070 lbs
Purchase

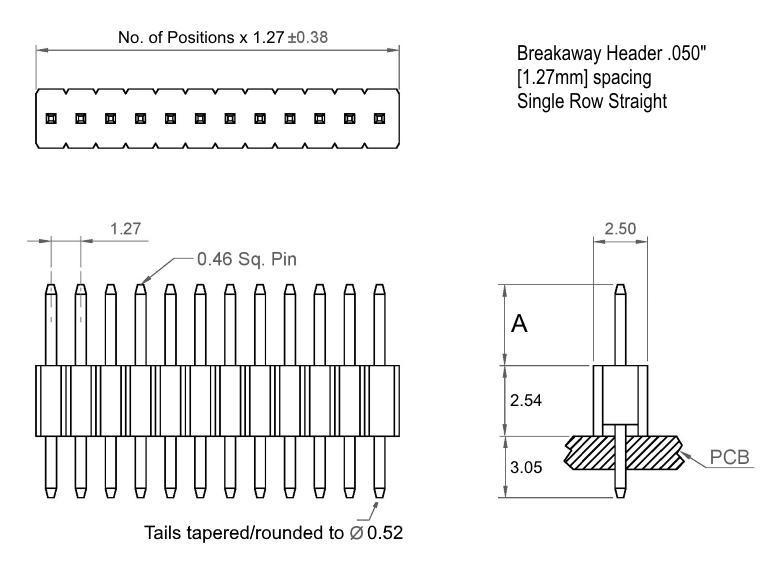

Description
Number of Pins: 4
1x4 Single Row Breakaway
Header Straight / Vertical
1.27mm Centerline
(.050" Pin Spacing)
A dim=2.54mm (.100")
0.46mm Square Posts Tin Plated
2.54mm Insulator Thickness
Male Pin Headers 1.27 mm Pitch
1x4 Single Row Breakaway
Header Straight / Vertical
1.27mm Centerline
(.050" Pin Spacing)
A dim=2.54mm (.100")
0.46mm Square Posts Tin Plated
2.54mm Insulator Thickness
Male Pin Headers 1.27 mm Pitch
