1x 5 pin Snappable Header .05" Sp .100"MH
Click to enlarge
More images
Click to enlarge
Part #: HWS13555
Unit Price: $0.29
Weight: 0.00090 lbs
Purchase
Description

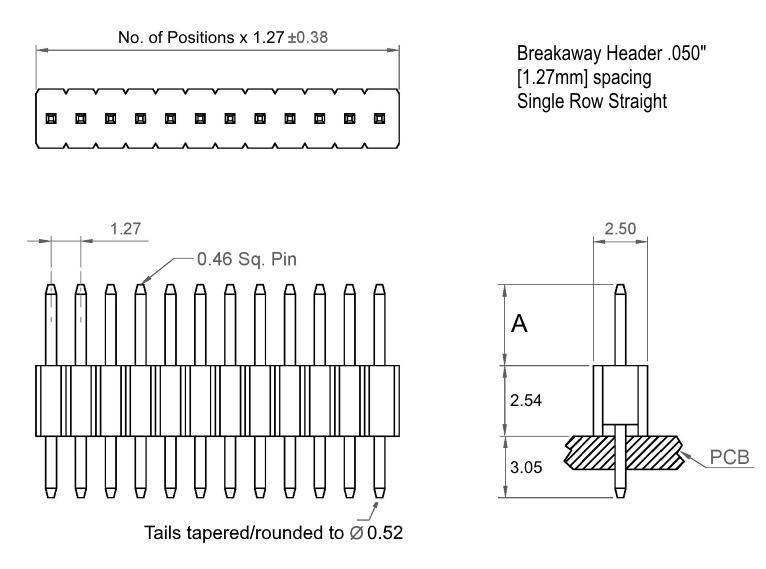

Number of Pins: 5
1x5 Single Row Breakaway
Header Straight / Vertical
1.27mm Centerline
(.050" Pin Spacing)
A dim=2.54mm (.100")
0.46mm Square Posts Tin Plated
2.54mm Insulator Thickness
Male Pin Headers 1.27 mm Pitch
1x5 Single Row Breakaway
Header Straight / Vertical
1.27mm Centerline
(.050" Pin Spacing)
A dim=2.54mm (.100")
0.46mm Square Posts Tin Plated
2.54mm Insulator Thickness
Male Pin Headers 1.27 mm Pitch
