2x 4 pin Female Header Machined .1"sp
Part #: HWS2965
Unit Price:
Weight: 0.00240 lbs
$1.06
Qty
Price
1+
$1.06
50+
$1.02
100+
$0.97
Overview

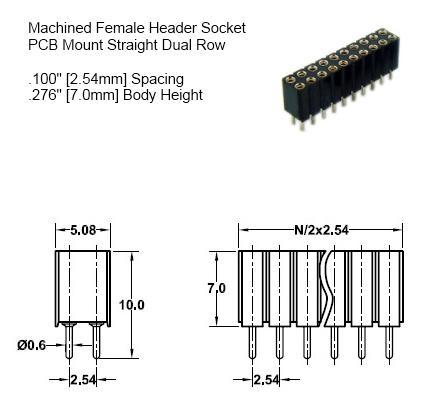

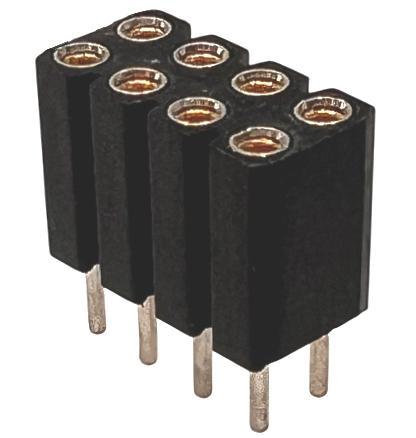

2x4 Machined Female Header Socket. Capable of mating with .025″ Square Post Headers.
Description
Female Header Socket 8 Pin
2x4 Female Receptacle
Hi-Rel Screw Machined
Header Socket Dual Row
PCB Mount Straight
.100" (2.54mm) Pin Spacing
.100" (2.54mm) Row Spacing
Mates with .025" Square Post Headers &
.026"-.035"dia machined round pin headers
Gold plated contacts Tin plated tails
.276" (7.0mm) Body Height
