2x10 pin Female Header Machined .1"sp

2x10 pin Female Header Machined .1"sp
Click to enlarge

More images

Click to enlarge
Part #: HWS3644
Unit Price: $2.36
Weight: 0.00600 lbs
Hot Deal
  • Qty Price
  • 1+ $2.36
  • 50+ $2.18
  • 100+ $1.98

Purchase

Overview

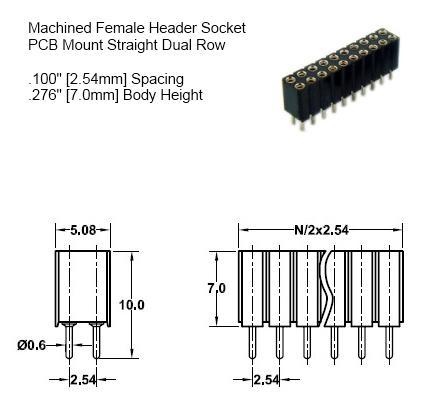

2x10 Machined Female Header Socket. Capable of mating with .025″ Square Post Headers.

Description

Female Header Socket 20 Pin
2x10
Female Receptacle
Hi-Rel Screw Machined
Header Socket Dual Row
PCB Mount Straight
.100" (2.54mm) Pin Spacing
.100" (2.54mm) Row Spacing
Mates with .025" Square Post Headers &
.026"-.033"dia machined round pin headers
Gold plated contacts Tin plated tails
.276" (7.0mm) Body Height
Cancer & Reproductive Harm: P65Warnings.ca.gov Click to see why the Warning
