1x40 pin Female Header Machined .1"sp
Click to enlarge
More images
Click to enlarge
Part #: HWS15858
Unit Price: $3.86
Weight: 0.01500 lbs
- Qty Price
- 1+ $3.86
- 30+ $3.79
- 50+ $3.74
- 100+ $3.65
- 250+ $3.57
Purchase
Overview

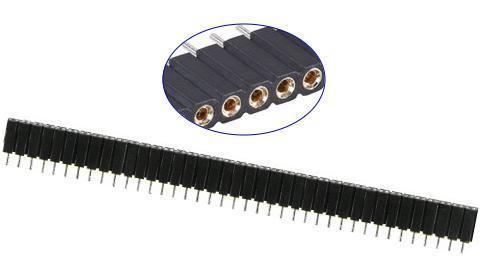

1x40 Machined Female Header Socket. Capable of mating with .025″ Square Post Headers.
Description

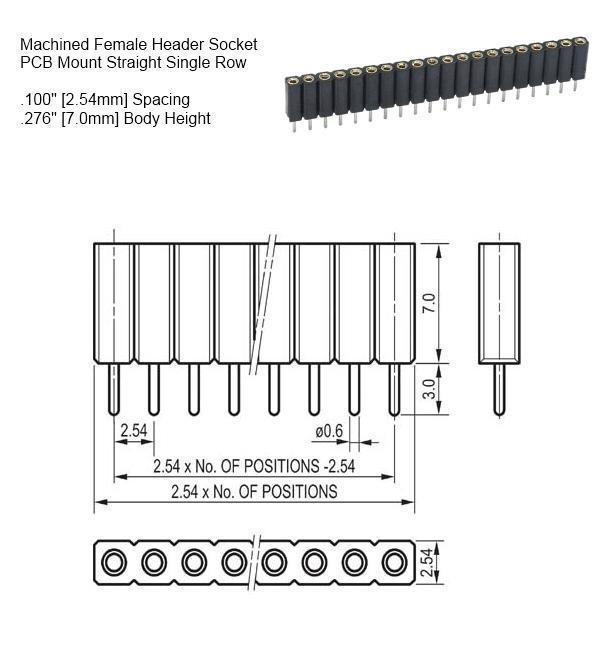

Female Header Socket 40 Pin
1x40 Female Receptacle
Hi-Rel Screw Machined
Header Socket Single Row
PCB Mount Straight
.100" (2.54mm) Pin Spacing
Mates with .025" Square Post Headers &
.026"-.035"dia machined round pin headers
Gold plated contacts Tin plated tails
.276" (7.0mm) Body Height
1x40 Female Receptacle
Hi-Rel Screw Machined
Header Socket Single Row
PCB Mount Straight
.100" (2.54mm) Pin Spacing
Mates with .025" Square Post Headers &
.026"-.035"dia machined round pin headers
Gold plated contacts Tin plated tails
.276" (7.0mm) Body Height
