1x 4 pin Female Header Machined .1"sp
Part #: HWS5192
Unit Price:
Weight: 0.00120 lbs
$0.62
Qty
Price
1+
$0.62
100+
$0.61
300+
$0.594
Overview

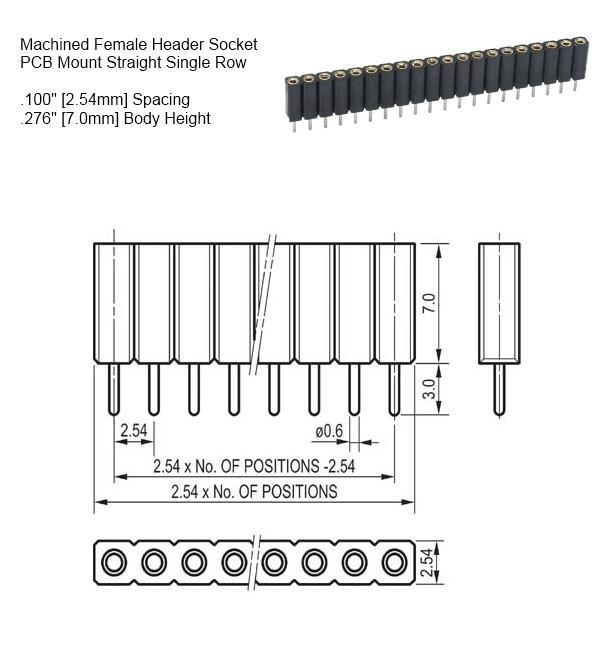

1x4 Machined Female Header Socket. Capable of mating with .025″ Square Post Headers.
Description
Female Header Socket 4 Pin
1x4 Female Receptacle
Hi-Rel Screw Machined
Header Socket Single Row
PCB Mount Straight
.100" (2.54mm) Pin Spacing
Mates with .025" Square Post Headers &
.026"-.035"dia machined round pin headers
Gold plated contacts Tin plated tails
.276" (7.0mm) Body Height
1x4 Female Receptacle
Hi-Rel Screw Machined
Header Socket Single Row
PCB Mount Straight
.100" (2.54mm) Pin Spacing
Mates with .025" Square Post Headers &
.026"-.035"dia machined round pin headers
Gold plated contacts Tin plated tails
.276" (7.0mm) Body Height
