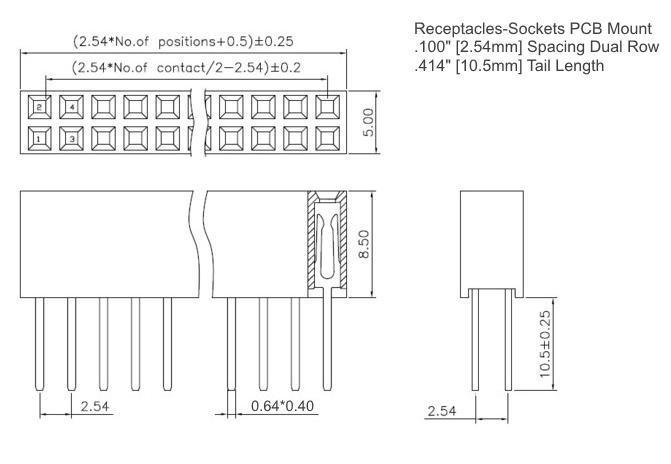

2x20 pin Female Header .1"sp Long Tail
Description
FEMALE HEADER SOCKET 40 PIN
2X20 FEMALE RECEPTACLE
ELEVATED LONG TAILS
STRAIGHT .1" (2.54mm) CENTERLINE
(.1" Pin Spacing .1" Row Spacing)
DUAL ROW MATES WITH
.025" SQUARE POST HEADERS
.335" (8.5mm) BODY HEIGHT
EXTENDED HEIGHT PINS
.414" (10.5mm) TAIL LENGTH
PCB MOUNT GOLD PLATED
FOR BOARD STACKING
2X20 FEMALE RECEPTACLE
ELEVATED LONG TAILS
STRAIGHT .1" (2.54mm) CENTERLINE
(.1" Pin Spacing .1" Row Spacing)
DUAL ROW MATES WITH
.025" SQUARE POST HEADERS
.335" (8.5mm) BODY HEIGHT
EXTENDED HEIGHT PINS
.414" (10.5mm) TAIL LENGTH
PCB MOUNT GOLD PLATED
FOR BOARD STACKING
