2x50 pin Female Header .1"sp Long Tail SQ pin
Click to enlarge
More images
Click to enlarge
Part #: HWS11089
Unit Price: $5.72
Weight: 0.03600 lbs
Purchase

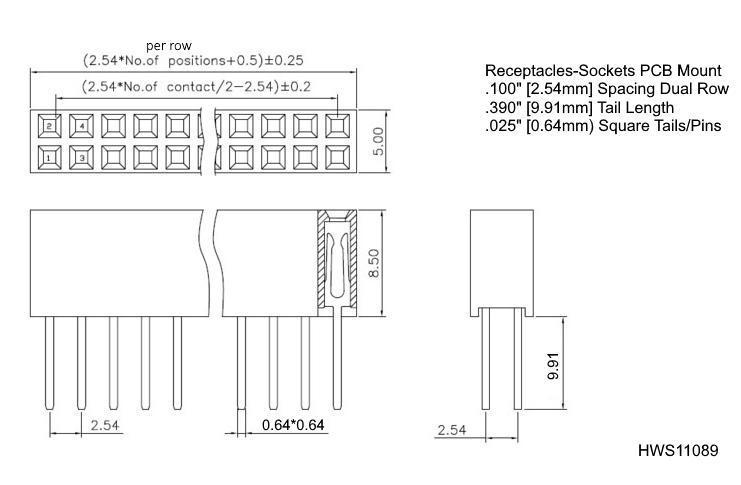

Description
FEMALE HEADER SOCKET 100 PIN
2X50 FEMALE RECEPTACLE
ELEVATED LONG TAILS
STRAIGHT .1" CENTERLINE
(2.54mm Pin Spacing)
DUAL ROW PCB MOUNT
Mates with .025" Square Post Headers
.335" (8.5mm) Body Height
EXTENDED HEIGHT PINS
.390" (9.91mm) Tail Length
.025" (0.64mm) Square Tails/Pins
Gold plated contacts Tin plated tails
For Board Stacking & Wire Wrapping
2X50 FEMALE RECEPTACLE
ELEVATED LONG TAILS
STRAIGHT .1" CENTERLINE
(2.54mm Pin Spacing)
DUAL ROW PCB MOUNT
Mates with .025" Square Post Headers
.335" (8.5mm) Body Height
EXTENDED HEIGHT PINS
.390" (9.91mm) Tail Length
.025" (0.64mm) Square Tails/Pins
Gold plated contacts Tin plated tails
For Board Stacking & Wire Wrapping
