2x13 pin Female Header .1"sp Long Tail
Click to enlarge
More images
Click to enlarge
Part #: HWS16494
Unit Price: $1.32
Weight: 0.01040 lbs
Purchase
Description

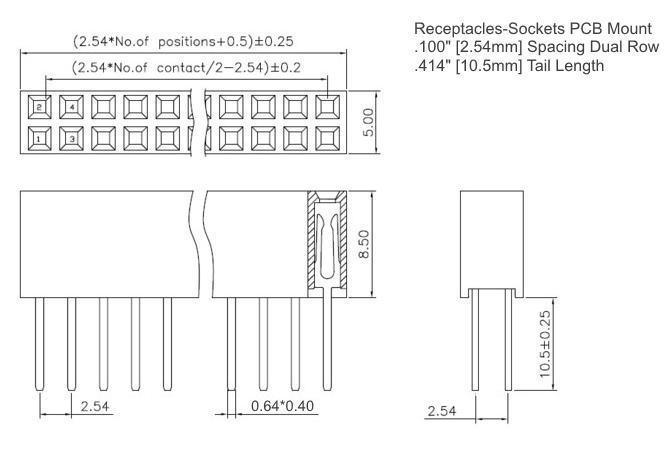

FEMALE HEADER SOCKET 26 PIN
2X13 FEMALE RECEPTACLE
ELEVATED LONG TAILS
STRAIGHT .1" (2.54mm) CENTERLINE
(.1" Pin Spacing .1" Row Spacing)
DUAL ROW MATES WITH
.025" SQUARE POST HEADERS
.335" (8.5mm) BODY HEIGHT
EXTENDED HEIGHT PINS
.414" (10.5mm) TAIL LENGTH
PCB MOUNT GOLD PLATED
FOR BOARD STACKING
2X13 FEMALE RECEPTACLE
ELEVATED LONG TAILS
STRAIGHT .1" (2.54mm) CENTERLINE
(.1" Pin Spacing .1" Row Spacing)
DUAL ROW MATES WITH
.025" SQUARE POST HEADERS
.335" (8.5mm) BODY HEIGHT
EXTENDED HEIGHT PINS
.414" (10.5mm) TAIL LENGTH
PCB MOUNT GOLD PLATED
FOR BOARD STACKING
