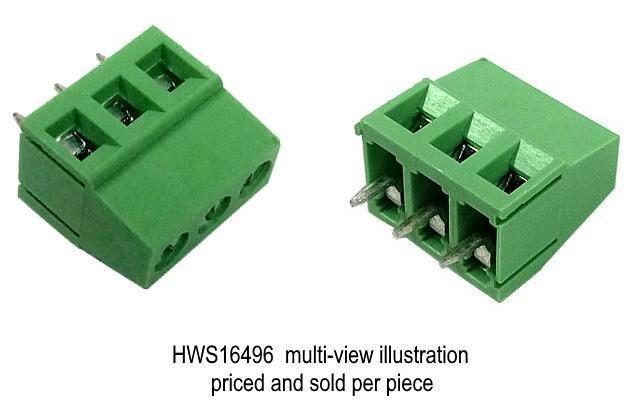

3 pin Terminal Block .200" sp .555"ht
Click to enlarge
More images
Click to enlarge
Part #: HWS16496
Unit Price: $0.99
Weight: 0.00992 lbs
- Qty Price
- 1+ $0.99
- 50+ $0.93
- 200+ $0.84
Purchase

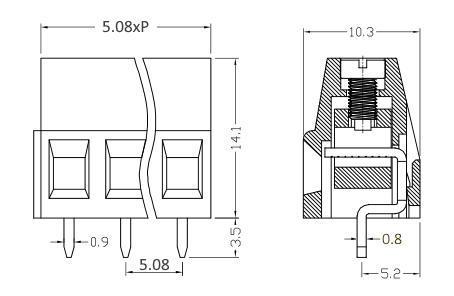

Description
Terminal Block PCB Mount
3 Position Straight / Vertical
~12-24 AWG Wire Size
Side Wire Entry
Rising Cage Clamp
Interlocking Type
.200" (5.08mm) Pin Spacing
14.1mm (.555") Height
10.3mm (.406") Depth
Green Color Insulator
5.08mm pitch screw terminal blocks
HWS16496 : rising-cage alternative for HWS15638
3 Position Straight / Vertical
~12-24 AWG Wire Size
Side Wire Entry
Rising Cage Clamp
Interlocking Type
.200" (5.08mm) Pin Spacing
14.1mm (.555") Height
10.3mm (.406") Depth
Green Color Insulator
5.08mm pitch screw terminal blocks
HWS16496 : rising-cage alternative for HWS15638
