3x 6 pin Snappable Header .1"sp
Click to enlarge
More images
Click to enlarge
Part #: HWS3262
Unit Price: $0.58
Weight: 0.00270 lbs
Purchase
Description

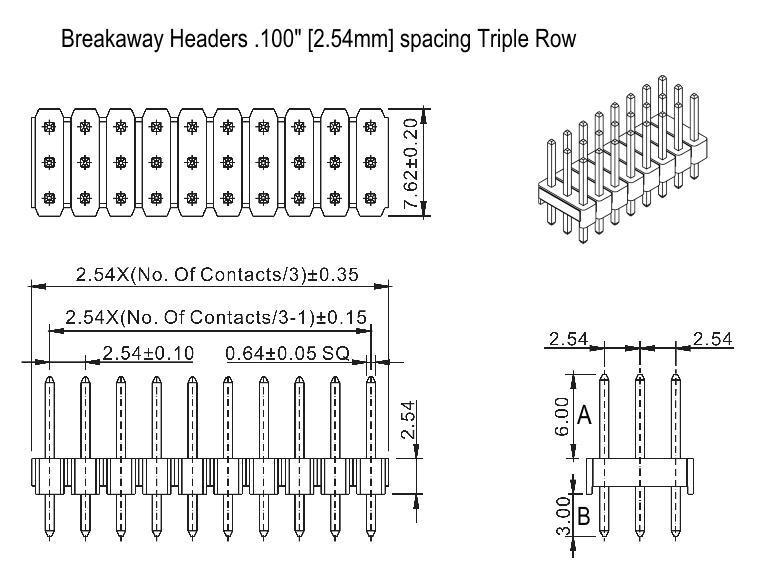

Triple Row Breakaway Header
18 pin 3x6 Straight PCB Mount
Header .1"x.1"x.1" Pitch
.100" (2.54mm) Pin Spacing
A dim=.235" (6.0mm)
B dim=.118" (3.0mm)
.1"(2.54mm) Insulator Thickness
.025" Square Posts Gold Plated
Three Rows Male Pin Headers
Vertical Through Hole
18 pin 3x6 Straight PCB Mount
Header .1"x.1"x.1" Pitch
.100" (2.54mm) Pin Spacing
A dim=.235" (6.0mm)
B dim=.118" (3.0mm)
.1"(2.54mm) Insulator Thickness
.025" Square Posts Gold Plated
Three Rows Male Pin Headers
Vertical Through Hole
