1x17 pin Snappable Header .1"sp

17 pin Breakaway Header .100" 2.54mm spacing
Click to enlarge

More images

Click to enlarge
Part #: HWS12759
Unit Price: $0.21
Weight: 0.00230 lbs
Hot Deal

Purchase

Description

NUMBER OF PINS: 17

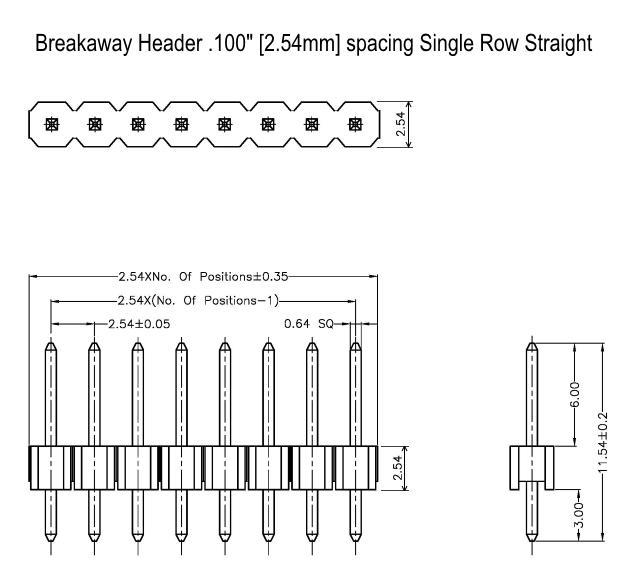

1x17 SINGLE ROW BREAKAWAY
HEADER .1"(2.54mm) SPACING
Straight (Vertical) Through Hole
A dim=.235" B dim=.118"
Male PCB Pin Headers
.025" Square Posts
Gold Flash Plating
Black Insulator
Cancer & Reproductive Harm: P65Warnings.ca.gov Click to see why the Warning
