3x12 pin Female Header 36p .1"sp
Click to enlarge
More images
Click to enlarge
Part #: HWS11972
Unit Price: $2.16
Weight: 0.00850 lbs
Purchase
Description
FEMALE HEADER SOCKET 36 PIN

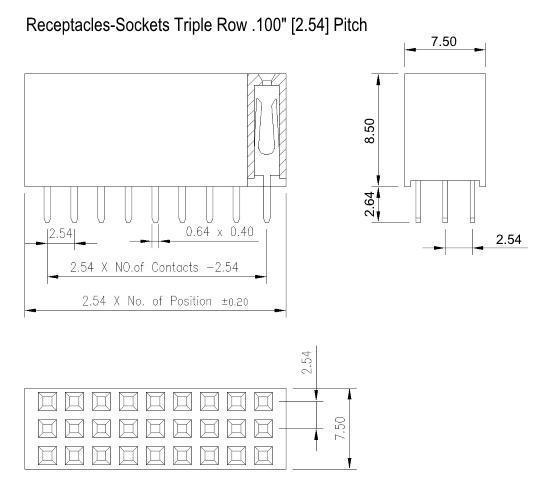

3X12 FEMALE RECEPTACLE
STRAIGHT .100" (2.54mm) CENTERLINE
(.1" Pin Spacing .1" Row Spacing)
TRIPLE ROW MATES WITH
.025" SQUARE POST HEADERS
GOLD PLATED CONTACTS
PCB MOUNT SOLDER TAILS
.104" (2.64mm) TAIL LENGTH
.335" (8.5mm) BODY HEIGHT
3X12 FEMALE RECEPTACLE
STRAIGHT .100" (2.54mm) CENTERLINE
(.1" Pin Spacing .1" Row Spacing)
TRIPLE ROW MATES WITH
.025" SQUARE POST HEADERS
GOLD PLATED CONTACTS
PCB MOUNT SOLDER TAILS
.104" (2.64mm) TAIL LENGTH
.335" (8.5mm) BODY HEIGHT
