32 pin SIP Machined Socket LP
Click to enlarge
More images
Click to enlarge
Part #: HWS16344
Unit Price: $3.22
Weight: 0.00380 lbs
- Qty Price
- 1+ $3.22
- 20+ $3.09
- 50+ $2.98
- 100+ $2.87
- 200+ $2.82
Purchase
Overview

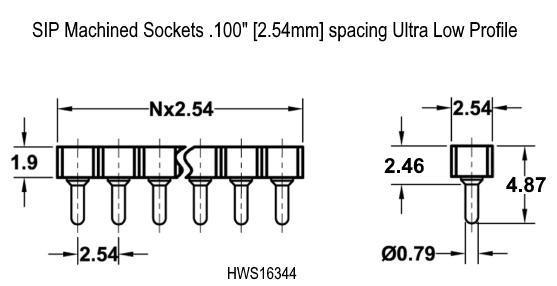

32 Pin Machined Single Row Socket Strip Ultra Low Profile
Description
NUMBER OF PINS: 32
1X32 Machined SIP Socket
Breakaway Ultra Low Profile
Gold plated contacts Tin plated tails
.1" (2.54mm) spacing black insulator
Mates with IC style pins &
Machined Pin Headers
(accepts .016"-.020"dia pins
up to .158" insertion depth)
1X32 Machined SIP Socket
Breakaway Ultra Low Profile
Gold plated contacts Tin plated tails
.1" (2.54mm) spacing black insulator
Mates with IC style pins &
Machined Pin Headers
(accepts .016"-.020"dia pins
up to .158" insertion depth)
