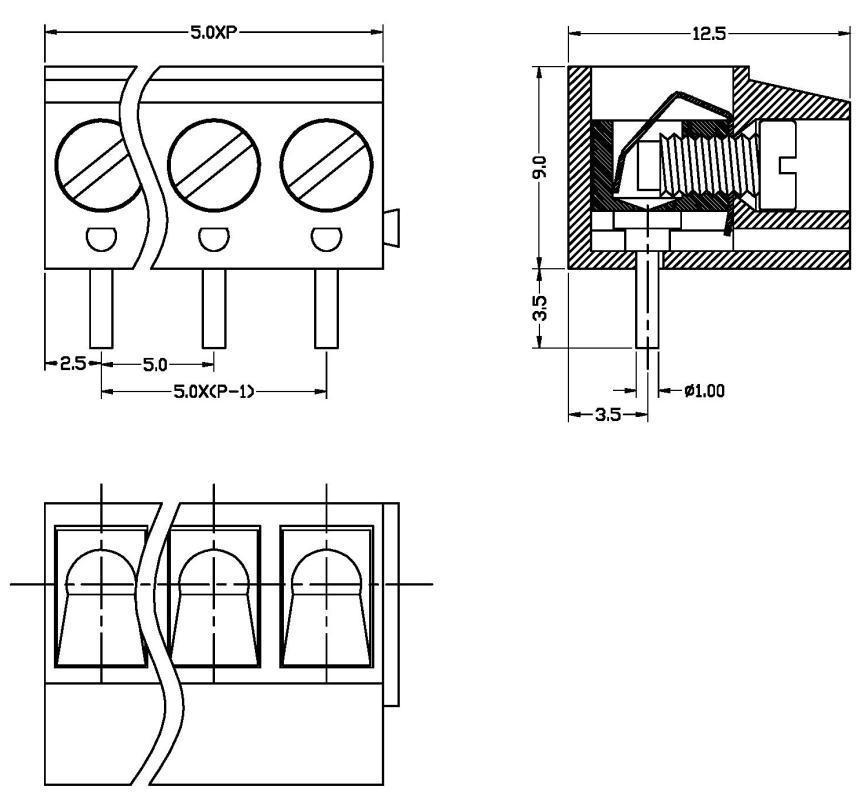

2 pin Terminal Block 5.0mm sp R/A
Click to enlarge
More images
Click to enlarge
Part #: HWS2827
Unit Price: $0.88
Weight: 0.00700 lbs
- Qty Price
- 1+ $0.88
- 300+ $0.79
Purchase
Description
Terminal Block PCB Mount
2 Position Right Angle
14-22 AWG Wire Size
Top Wire Entry
Wire Guard / Protector
Interlocking Type
5.0mm (.197") Pin Spacing
12.5mm (.492") Depth
9.0mm (.354") Height
Blue Color Insulator
5.00mm pitch screw terminal blocks R/A
2 Position Right Angle
14-22 AWG Wire Size
Top Wire Entry
Wire Guard / Protector
Interlocking Type
5.0mm (.197") Pin Spacing
12.5mm (.492") Depth
9.0mm (.354") Height
Blue Color Insulator
5.00mm pitch screw terminal blocks R/A
