1x36 pin Female Header .1"sp
Click to enlarge
More images
Click to enlarge
Part #: HWS15776
Unit Price: $0.98
Weight: 0.00850 lbs
- Qty Price
- 1+ $0.98
- 100+ $0.94
Purchase

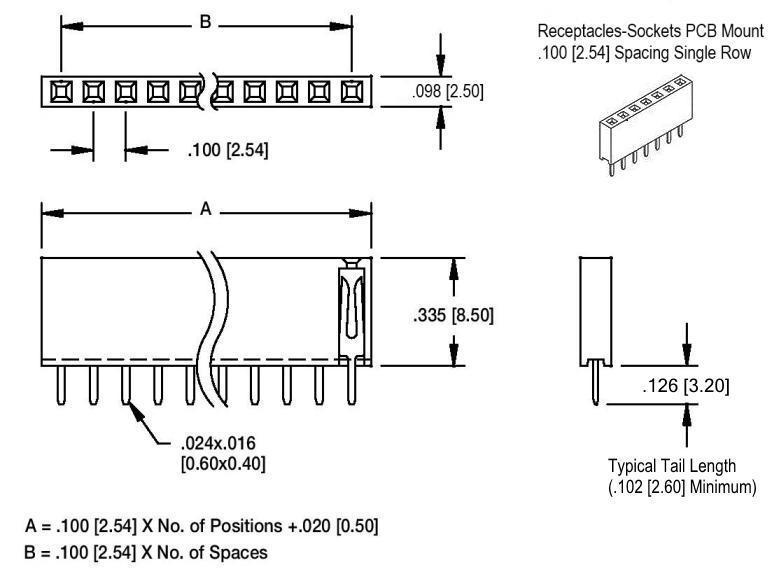

Description
FEMALE HEADER SOCKET 36 PIN
1X36 FEMALE RECEPTACLE
STRAIGHT .1" CENTERLINE
(2.54mm Pin Spacing)
SINGLE ROW MATES WITH
.025" SQUARE POST HEADERS
GOLD PLATED CONTACTS
PCB MOUNT SOLDER TAILS
.335" (8.5mm) BODY HEIGHT
1X36 FEMALE RECEPTACLE
STRAIGHT .1" CENTERLINE
(2.54mm Pin Spacing)
SINGLE ROW MATES WITH
.025" SQUARE POST HEADERS
GOLD PLATED CONTACTS
PCB MOUNT SOLDER TAILS
.335" (8.5mm) BODY HEIGHT
