1x 5 pin Female Header .1"sp
Click to enlarge
More images
Click to enlarge
Part #: HWS15770
Unit Price: $0.35
Weight: 0.00130 lbs
- Qty Price
- 1+ $0.35
- 50+ $0.32
- 200+ $0.31
- 500+ $0.284
Purchase

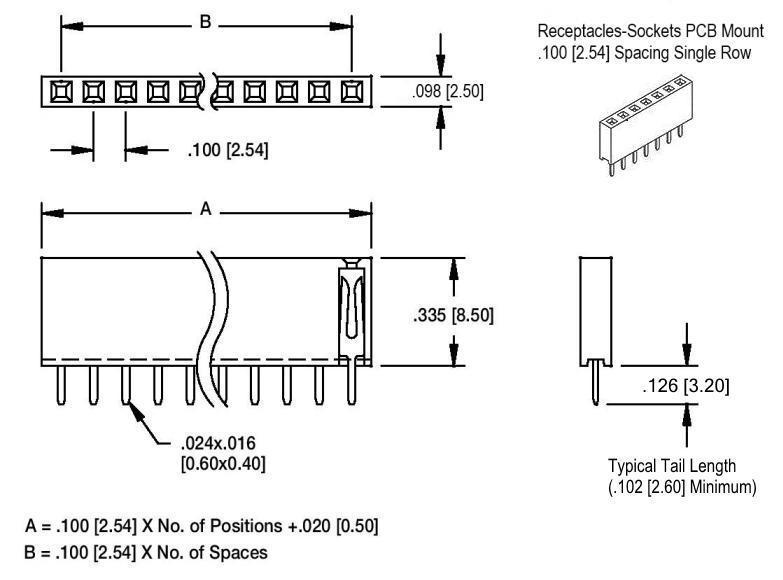

Description
FEMALE HEADER SOCKET 5 PIN
1X5 FEMALE RECEPTACLE
STRAIGHT .1" CENTERLINE
(2.54mm Pin Spacing)
SINGLE ROW MATES WITH
.025" SQUARE POST HEADERS
GOLD PLATED CONTACTS
PCB MOUNT SOLDER TAILS
.335" (8.5mm) BODY HEIGHT
1X5 FEMALE RECEPTACLE
STRAIGHT .1" CENTERLINE
(2.54mm Pin Spacing)
SINGLE ROW MATES WITH
.025" SQUARE POST HEADERS
GOLD PLATED CONTACTS
PCB MOUNT SOLDER TAILS
.335" (8.5mm) BODY HEIGHT
